- Place of Origin: Shandong, China (Mainland)
- Brand Name: LUZHONG

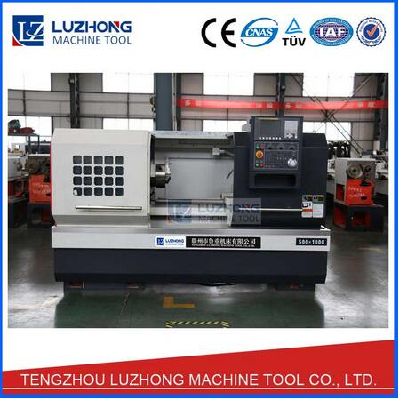

- Model Number: CAK6160
Product description:
1.The function is comprehensive, the processing efficiency is high, the operation is simple.
2.Beautiful appearance;
3.High precision rolling bearing support spindle, high rotation accuracy;
4.Fully enclosed shell, safe and reliable;
Product main technical Specifications:
Specifications | Units | CAK6160 |
Max. swing over bed | mm | 600 |
Max. swing over cross slide | mm | 395 |
Max. length of workpiece | mm | 1500 |
Min.input X/Z axis | mm | 0.001 |
Spindle bore diameter | mm | 82(match130) |
Spindle inner hole taper | 1:20 | |
Spindle steps | Stepless speed change | |
Workpiece clamping way | mm | Three jaw chuck K11 250(OptionalK11-380) |
Clamping way | Manual three jaw chuck /K11-250 | |
Main motor power(frequency) | kW | Servo 11 |
Frequency converter | kW | 15 |
X/Z axis | N.m | 10/15 |
Rapid feed speed X/Z axis | m/min | 5/10 |
Turret | Four-position electrical knife rest | |
Turret(model/No.) | LDB4-120(6163) | |
Repeating positing accuracy | mm | ≤0.004 |
The tailstock sleeve diameter | mm | 75 |
The tailstock sleeve | mm | 200 |
The tailstock top cone hole | Morse 5 | |
Weight | kg | 3150 |
Overall dimensions(L*W*H) | mm | 3600*1300*1680 |
Product standard configuration:
No. | Specifications | Number | Standard configuration |
1 | Numerical control system | 1/set | Wide GSK980/ servo (optional) |
2 | chuck | 1/set | Manual three jaw chuck K11 250 |
3 | Tailstock | 1/set | Manual tail base |
4 |
X -ball screw | 1/set | PRC |
5 |
Z -ball screw | 1/set | PRC |
6 | Electric turret | 1/set | LD4B-A(6150) |
7 | X,Z-Lead screw bearing | 1/set | PRC |
8 | X,Z- Coupling | 1/set | PRC |
9 | Spindle bearing | 1/set | PRC |
10 |
Fuselage Casting | 1/set | High quality resin sand casting |
11 | Spindle assembly | 1/set | Assembly spindle |
12 | Spindle clamping | Manual chuck | |
13 | Paint | 1/set | Color can be configured according to customer requirements, not special requirements according to our standard color configuration |
14 | Lubrication | 1/set | Joint venture (electric lubricating oil pump, lubricating oil circuit is installed) |
