- Place of Origin: China (Mainland)
- Brand Name: LUZHONG

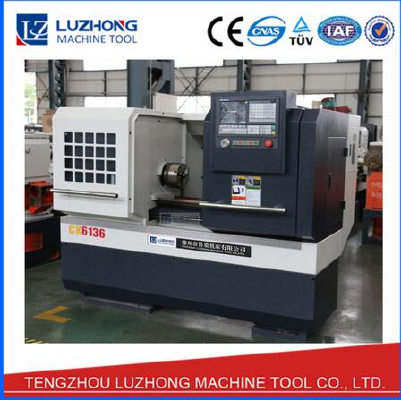

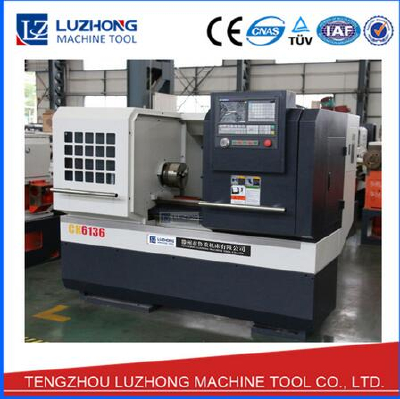

- Model Number: CK6136
Product description:
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Product main technical Specifications:
ITEM | Specifications | UNITS | CK6136 |
Capacity | Max.Swing over bed | mm | Φ360 |
Max.swing over cross slide | mm | Φ200 | |
Maximum length of workpiece | mm | 750.1000.1500.2000 | |
Spindle | Spindle hole | mm | 52mm(82mm) |
Spindle nose | ISO-C6(C8) | ||
Spindle tap | MT6 | ||
Spindle speeds(Number) | rpm | 90-1800rpm | |
Feed | Z-axis stroke | mm | 750.1000.1500.2000 |
X-axis stroke | mm | 330 | |
rapid moving speed(m/min) | m/min | 3/6 | |
X/Z min input(mm) | mm | 0.001 | |
Tailstock | Dia. Of tailstock sleeve |
mm | 75 |
Taper of tailstock sleeve | MT5 | ||
Travel of tailstock sleeve | Mm | 140 | |
Carriage | Tool number | 4(6) | |
Tool body size | mm | 25*25 | |
Knife tool change time | s | 2 | |
Position accuracy | Repeat positioning accuracy | mm | 0.01 |
Power | Main motor power | K.W | 7.5 |
Machine size(L*W*H) | Overall dismensions for 750mm | Mm | 2200*1500*1600 |
Overall dismensions for 1000mm | Mm | 2450*1500*1600 | |
Overall dismensions for 1500mm | Mm | 2950*1500*1600 | |
Overall dismensions for 2000mm | Mm | 3450*1500*1600 | |
Weight | Weight for 750mm | kg | 1600 |
Weight for 1000mm | Kg | 1700 | |
Weight for 1500mm | Kg | 1900 | |
Weight for 2000mm | kg | 2100 |
Product standard configuration:
No. | ITEM | Number | Standard configuration |
1 | Numerical control system | 1/set | Optional system (gd980, Taiwan, FANUC, Siemens) etc. |
2 | Chuck | 1/set | Three jaw chuck K11 250 (optional K11 380) |
3 | Tailstock | 1/set | Manual tail base |
4 | X -ball screw | 1/set | PRC |
5 | Z -ball screw | 1/set | PRC |
6 | Electric turret | 1/set | LD4B-A(6150) |
7 | X,Z-Lead screw bearing | 1/set | PRC |
8 | X,Z- Coupling | 1/set | PRC |
9 | Spindle bearing | 1/set | PRC |
10 | Fuselage Casting | 1/set | High quality resin sand casting |
11 | Spindle assembly | 1/set | Assembly spindle |
12 | Spindle clamping | Manual chuck | |
13 | Paint | 1/set | Color can be configured according to customer requirements, not special requirements according to our standard color configuration |
14 | Lubrication | 1/set | Joint venture (electric lubricating oil pump, lubricating oil circuit is installed) |
