- Place of Origin: China (Mainland)
- Brand Name: LUZHONG

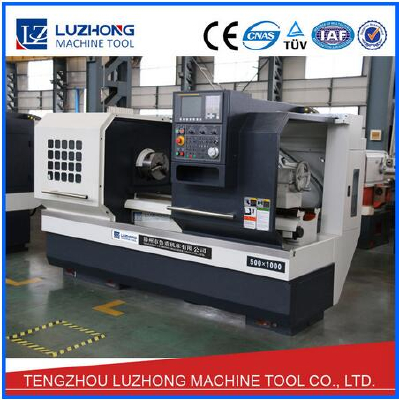

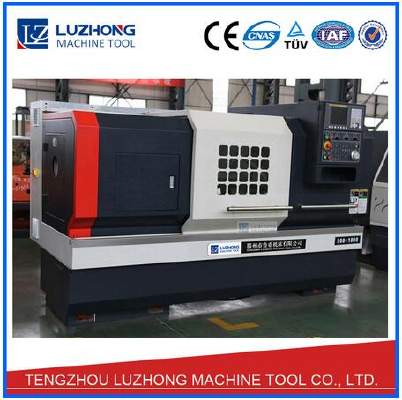

- Model Number: CAK 6150
Product description:
1.The function is comprehensive, the processing efficiency is high, the operation is simple.
Beautiful appearance;
2.High precision rolling bearing support spindle, high rotation accuracy;
3.Fully enclosed shell, safe and reliable;
Product main technical specifications:
Specifications | Units | CAK6150 |
Max. swing over bed | mm | 500 |
Max. swing over cross slide | mm | 280 |
Max. length of workpiece | mm | 1000 |
Min.input X/Z axis | mm | 0.001 |
Spindle bore diameter | mm | 82(match 90) |
Spindle inner hole taper | 1:20 | |
Spindle steps | Stepless speed change/ Optionaltwo step | |
Workpiece clamping way | mm | Three jaw chuckK11 250 |
Clamping way | manual three jaw chuck /K11-250 | |
Main motor power(frequency) | kW | Servo 7.5 |
Frequency converter | kW | 11 |
X/Z axis | N.m | 7.5/10 |
Rapid feed speed X/Z axis | m/min | 5/10 |
Turret | Four-position electrical knife rest | |
Turret(model/No.) | LD4B-6150 | |
Repeating positing accuracy | mm | ≤0.004 |
The tailstock sleeve diameter | mm | 75 |
The tailstock sleeve | mm | 200 |
The tailstock top cone hole | Morse 5# | |
Weight | kg | 2800 |
Overall dimensions(L*W*H) | mm | 2940*1300*1680 |
Product standard configuration:
NO. | Specifications | Number | Standard configuration | Note |
1 | Numerical control system | 1/set | Wide GSK980/ servo (optional) | |
2 | Chuck | 1/set | manual three jaw chuck K11 250 | |
3 | Tailstock | 1/set | Manual tail base | |
4 | X -ball screw | 1/set | PRC | |
5 | Z -ball screw | 1/set | PRC | |
6 | Electric turret | 1/set | LD4B-A(6150) | |
7 | X,Z-Lead screw bearing | 1/set | PRC | |
8 | X,Z- Coupling | 1/set | PRC | |
9 | Spindle bearing | 1/set | PRC | |
10 | Fuselage Casting | 1/set | High quality resin sand casting | |
11 | Spindle assembly | 1/set | Assembly spindle | |
12 | Spindle clamping | Manual chuck | ||
13 | Paint | 1/set | Color can be configured according to customer requirements, not special requirements according to our standard color configuration | |
14 | Lubrication | 1/set | Joint venture (electric lubricating oil pump, lubricating oil circuit is installed) |
