- Place of Origin: Shandong, China (Mainland)
- Brand Name: LUZHONG
- Model Number: XK7125

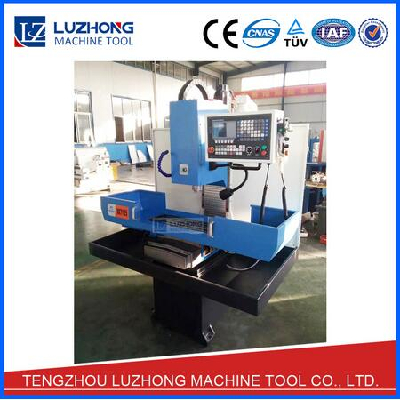

The main performance characteristics:
1, The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2, The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3, The pre tension precision ball screw drive
4, The high speed, high precision, high rigidity spindle unit
5, The intermittent automatic lubrication
6, Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Product main technical specifications:
Specifications | Units | XK7125 |
X-axis travel | mm | 450 |
Y-axis travel | mm | 260 |
Z-axis travel | mm | 380 |
Table size | mm | 900×250 |
Spindle power | kw | 2.2 |
Maximum spindle speed | rpm | 6000 |
Rapid traverse (X/Y/Z) | mm/min | 6000/5000/4000 |
Spindle nose to table | mm | 50-430 |
Spindle center to column surface distance rail | mm | 330 |
Positioning accuracy | mm | 0.02 |
Repeat accuracy | mm | 0.01 |
Machine weight | kg | 1300 |
Dimensions | mm | 1200×1500×2100 |
- Place of Origin: Shandong, China (Mainland)
- Brand Name: LUZHONG
- Model Number: XK7125
