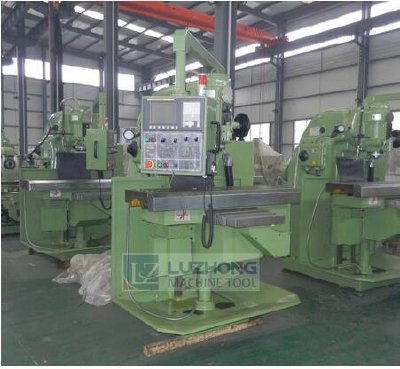

 hot sale XK5032 XK5040 cnc milling machine/cnc milling/cnc millingmachine price

hot sale XK5032 XK5040 cnc milling machine/cnc milling/cnc millingmachine price

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: any port in China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-05-14
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China (Mainland)
  • Brand Name:  LUZHONG
  • Model Number:  XK5032

The main performance characteristics:

1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.

2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body,

3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,

4. The high speed, high precision and high rigidity spindle unit,

5. The intermittent automatic lubrication.

Application:

1. The product for the X, y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.

Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,

2. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.

3. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.

4. Can be petty four axis of rotation, in order to meet the special requirements of machining parts

Product main technical parameters:



Specifications

Units

XK5032

Table size

mm

1320x320

Table travel (X.Y.Z)

mm

900x290x350

T-type slot(numbers / width /space)

mm

3-18-80

Max. load working table

kg

320

Distance from spindle nose to table

mm

40-390

Distance from column axis to column guide way

mm

350

Rapid feed speed(X.Y.Z)

mm/min

6000/6000/3000

Feed speed X.Y(.Z)

mm/min

6-3200(3-1600)

Spindle travel

mm

70

Spindle taper


ISO50(7:24)

Max. 5revolving angle of vertical milling head

°

±45°

Spindle speed range

rpm

30-1500(18 steps)

Spindle motor power

KW

7.5

Longitudinal, transverse feed motor torque(X.Y)

N. m

12

Vertical feed motor torque (Z)

N. m

22

Max. spindle torque

N. m

1000

Overall dimensions(Lx W x H)

mm

2300x1900x2300

Machine weight

Kg

3000
